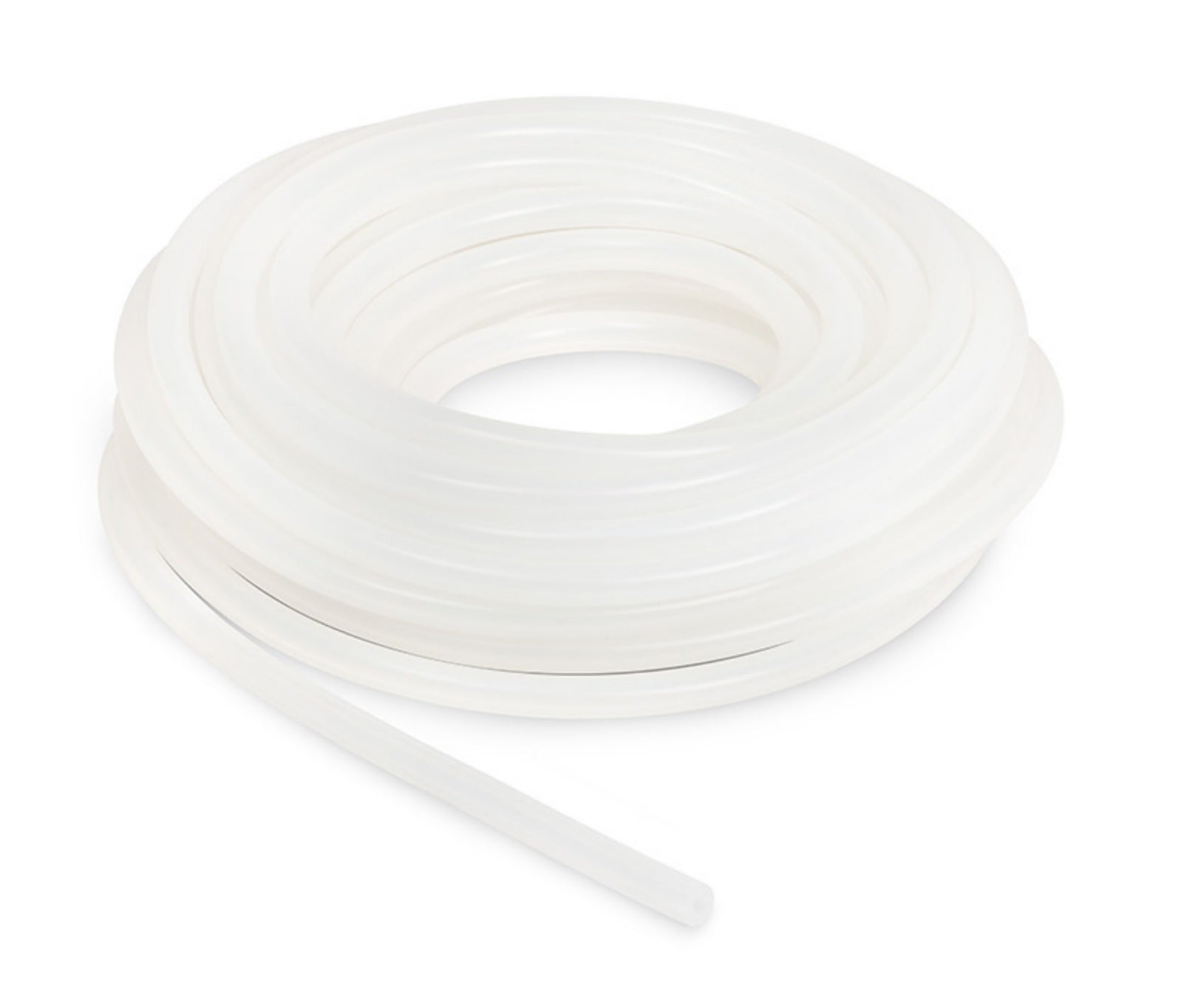

Innovasil® P 50 Silicone Tubing
-
Product description
Innovasil® P grades are high performance, platinum-cured silicone tubings specifically developed for single use system and peristaltic pump application in pharmaceutical industry. They are manufactured in ISO 14644-1 certified ISO class 7 clean room and are available in 50 to 75 Shore A durometers, thus are ideally suited for single use assemblies, pumping, process filling and sampling applications in bioprocessing. They have very low particle spallation during pumping process, high purity, smoother inner and outter surface, laser-marked, and the most importantly, are studied widely for extractables and leachables either pre or post-sterilization. Innovasil® P pharmaceutical grades are ideal replacement to imported brands such as Advantapure®, Nalgene®, Tygon®, Sani-Tech® etc., and are fully compatible to peristaltic pumps such as Watson Marlow®, Cole Parmer® etc. Innovasil® P grades are FDA DMF III registered.
Features Physical properties Regulations Stable flow characteristics Hardness Shore A : 50A USP Class VI Non-animal derived and nonhemolytic
Specific gravity : 1.14g/cm3 ISO 10993 Sterilizable by ETO, autoclave, Gamma Tensile strength : 9.7MPa FDA 21CFR 177.2600 Manufactured in ISO 7 clean room Elongation : 100% USP 71, 85, 381, 665, 788, 661; EP 3.1.9
Full validation and extractables studies Max working temperature : 200C FDA DMF III registered Coil length are available from 25 to 100 ft upon request.
Other ID x OD size are available and special sizes can be customized.
All custom products are subject to minimum order quantities and lead times.
For other custom options, please contact us at info@innovapure.com .Advantapure® is trademark of Newage Industry, Nalgene® is trademark of Thermofisher, Tygon® and Sani-Tech® is trademark of Saint Gobain.
Product description
Innovasil® P grades are high performance, platinum-cured silicone tubings specifically developed for single use system and peristaltic pump application in pharmaceutical industry. They are manufactured in ISO 14644-1 certified ISO class 7 clean room and are available in 50 to 75 Shore A durometers, thus are ideally suited for single use assemblies, pumping, process filling and sampling applications in bioprocessing. They have very low particle spallation during pumping process, high purity, smoother inner and outter surface, laser-marked, and the most importantly, are studied widely for extractables and leachables either pre or post-sterilization. Innovasil® P pharmaceutical grades are ideal replacement to imported brands such as Advantapure®, Nalgene®, Tygon®, Sani-Tech® etc., and are fully compatible to peristaltic pumps such as Watson Marlow®, Cole Parmer® etc. Innovasil® P grades are FDA DMF III registered.
| Features | Physical properties | Regulations |
| Stable flow characteristics | Hardness Shore A : 50A | USP Class VI |
| Non-animal derived and nonhemolytic |
Specific gravity : 1.14g/cm3 | ISO 10993 |
| Sterilizable by ETO, autoclave, Gamma | Tensile strength : 9.7MPa | FDA 21CFR 177.2600 |
| Manufactured in ISO 7 clean room | Elongation : 100% | USP 71, 85, 381, 665, 788, 661; EP 3.1.9 |
| Full validation and extractables studies | Max working temperature : 200C | FDA DMF III registered |
Coil length are available from 25 to 100 ft upon request.
Other ID x OD size are available and special sizes can be customized.
All custom products are subject to minimum order quantities and lead times.
For other custom options, please contact us at info@innovapure.com .
Advantapure® is trademark of Newage Industry, Nalgene® is trademark of Thermofisher, Tygon® and Sani-Tech® is trademark of Saint Gobain.
