Innovalene® MED 55 MBT - 2 stops/stop distance 152mm/tubing length 381mm
-
Product description

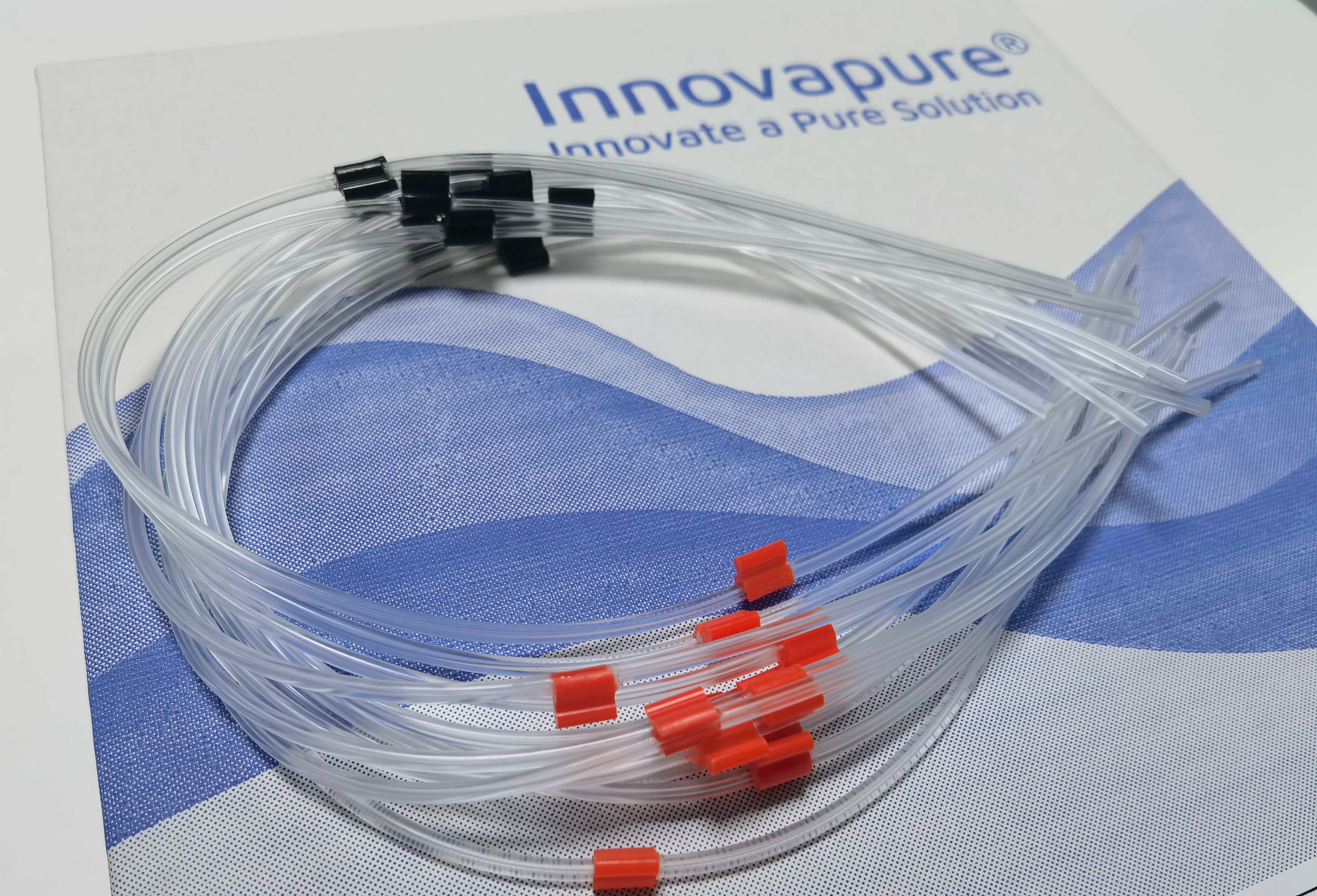

Innovalene® MED 55 MBT (Micro Bore Tubing) series are specifically developed to provide superior performance in micro peristaltic pump of autoanalyzer instrument applications. Manufactured from virgin, FDA approved raw materials, and homogeneously extruded to precise dimensional tolerances. It provides an excellent alternative to TAAT tubing, especially when accurate tubing size is a concern in micro pump use. Innovalene® MED 55 MBT series meet today’s most stringent cytotoxicity and extractability requirements for critical pharmaceutical and medical process applications. It is also recommended for most biological process fluids. Innovalene® MED 55 MBT series are available in 2 stops and 3 stops configurations and nominal tubing. By applying our special adhesive, firm stop adhesion reduces risk of tubing slip within pump head and prevent varible flow rates to improve productivity, accuracy and safety. In order to easy assembly, each end of MBT tubing can be further flared upon request.
Features Physical properties Regulations Superior pump life Hardness Shore A : 55A USP Class VI Non-animal derived and nonhemolytic
Specific gravity : 1.15g/cm3 ISO 10993 Sterilizable by ETO, autoclave, Gamma Tensile strength : 15.0MPa FDA 21CFR 177.2600 Designed for micro peristaltic pump
Elongation : 550% RoHS, REACh Designed for analytical devices TSCA Each pack includes 12 pieces of tubing and other pack sizes are available upon request.

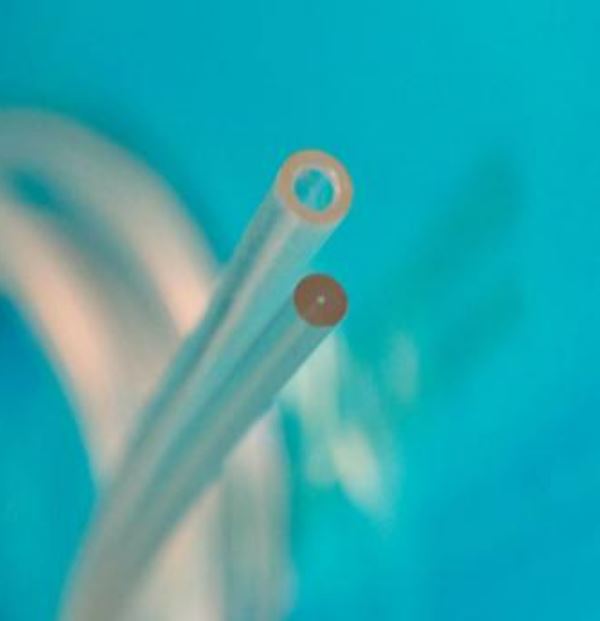

Other ID x OD sizes, stop color, stops distance and tubing length are available and special needs can be customized. Each end of MBT tubing can be further flared for easy assembly.
All custom products are subject to minimum order quantities and lead times.
For other custom options, please contact us at info@innovapure.com .
Product description
Innovalene® MED 55 MBT (Micro Bore Tubing) series are specifically developed to provide superior performance in micro peristaltic pump of autoanalyzer instrument applications. Manufactured from virgin, FDA approved raw materials, and homogeneously extruded to precise dimensional tolerances. It provides an excellent alternative to TAAT tubing, especially when accurate tubing size is a concern in micro pump use. Innovalene® MED 55 MBT series meet today’s most stringent cytotoxicity and extractability requirements for critical pharmaceutical and medical process applications. It is also recommended for most biological process fluids. Innovalene® MED 55 MBT series are available in 2 stops and 3 stops configurations and nominal tubing. By applying our special adhesive, firm stop adhesion reduces risk of tubing slip within pump head and prevent varible flow rates to improve productivity, accuracy and safety. In order to easy assembly, each end of MBT tubing can be further flared upon request.
| Features | Physical properties | Regulations |
| Superior pump life | Hardness Shore A : 55A | USP Class VI |
| Non-animal derived and nonhemolytic |
Specific gravity : 1.15g/cm3 | ISO 10993 |
| Sterilizable by ETO, autoclave, Gamma | Tensile strength : 15.0MPa | FDA 21CFR 177.2600 |
| Designed for micro peristaltic pump |
Elongation : 550% | RoHS, REACh |
| Designed for analytical devices | TSCA |
Each pack includes 12 pieces of tubing and other pack sizes are available upon request.
Other ID x OD sizes, stop color, stops distance and tubing length are available and special needs can be customized. Each end of MBT tubing can be further flared for easy assembly.
All custom products are subject to minimum order quantities and lead times.
For other custom options, please contact us at info@innovapure.com .
